POLYVINYLIDENE FLUORIDE (PVDF)

DESCRIPTION

Polyvinylidene fluoride (PVDF) is a high molecular weight crystalline thermoplastic . PVDF has excellent corrosion and chemical resistance and performs in many APPLICATIONS up to 300°F (149°C). It is used extensively in chemical processing APPLICATIONS because of its unique combination of properties. PVDF is tough and durable, and is easily fabricated into finished parts.

KEY FEATURES

· Strong Chemical Resistance · Absolutely Non-Toxic

· Remarkable Fire Resistant Properties · Good Mechanical Properties in Tension,

· UV and Gamma Radiation Stability Deflection, Torsion, and Compression

· Very High Dielectric and Piezoelectric Compared to other Fluorinated Polymers Constants

· Uses Standard Machining and Welding · Good Surface Hardness and Resilience Techniques

· Does Not Swell or Alter in a Wet Environment

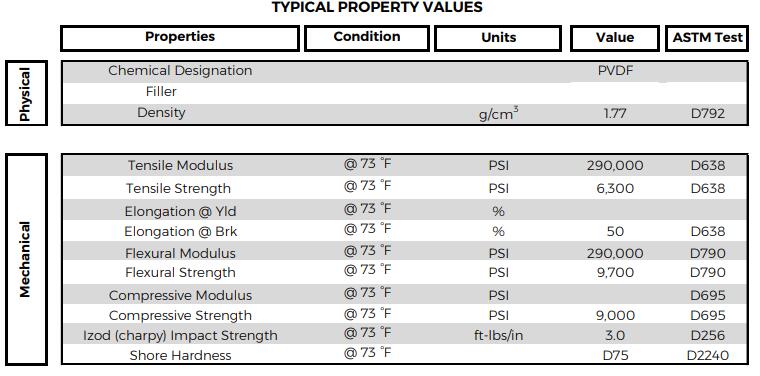

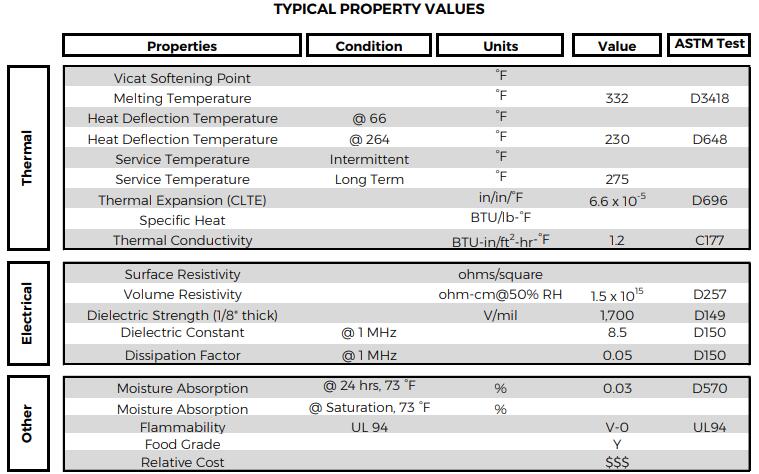

TYPICAL PROPERTY VALUES
